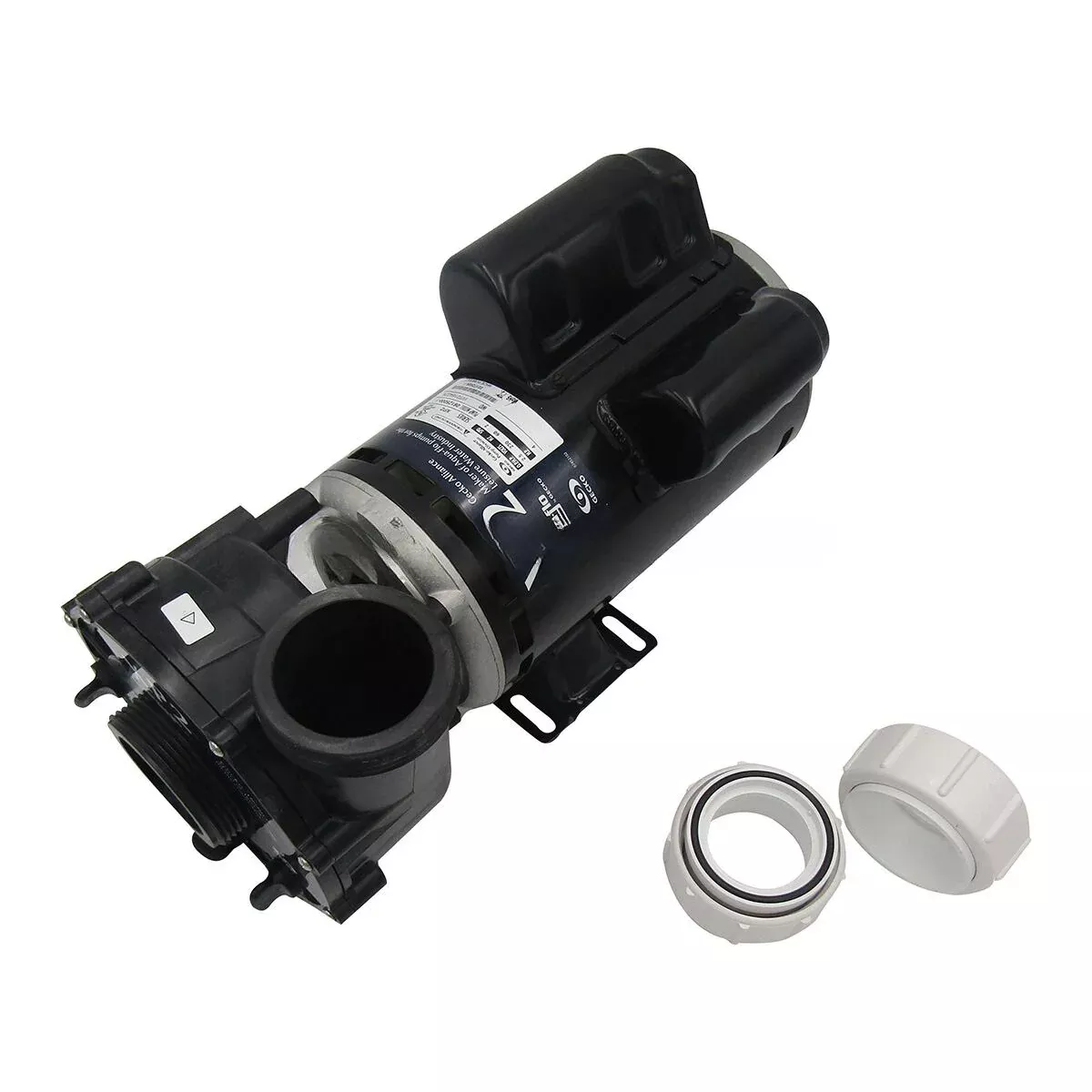

06120500-2040B Aqua-Flo XP2 Spa Pump – 2 HP, 230 Volts.

Description

06120500-2040 Aqua-Flo® XP2 Spa Pump – 2 HP, 230 Volts

06120500-2040B Aqua-Flo® XP2 Spa Pump – 2 HP, 230 Volts.

Features:

• Side Discharge
• Includes a set of 2″ pump unions.
• 2″ Suction and Discharge

Product specifications:

• 230V
• 48Fr
• 8.4/3.0 Amps
• 2.0 HP

Technical and Installation:

• Pump is manufactured in the wet-end orientation shown, but you can simply rotate you wet end  to match your spa plumbing, if needed.
• Pump is manufactured without a pump amp cord. You will need to use your existing pump amp cord or purchase a new one.
• Please see  How to Wire a Spa Pump  to wire the pump amp cord.
• Can use the following gaskets/orings:
• 2″ Pump Union O-Ring 805-0230 (6000-645)
• 711-4010 Waterway Heater Flat Gasket
• 21619 Balboa ® | Heater Coupling Gasket 2″

SKU: 06120500-2040B
MPN: 06120500-2040B
UPC: 06120500-2040B
Manufacturer: Aqua-Flo®
Manufacturer Warranty: 1 year

Also known as: 05620010-5340, 05620011-5340, 05620012-5340, 05620013-5340, 05620014-5300, 05620015-1000, 05620016-1000, 05620017-2300, 05620018-2300, 05620019-2300, 05620256-1340, 05620374-2340, 05620485-2340, 05620489-2300, 05620489-2340, 06620397-2, 05520006-5340, 05520008-5300, 05520009-5300, 05520010-2300, 05520011-2300, 05520012-2300, 05525000-2370, 05615009-5370, 05615010-5370, 05620001-2300, 05620001-2340, 05620002-2040, 05620003-2040, 06120500-2040, 6120000, 1-00-0144A, 061205002040, AF061205002040, 05020400-2040, 05020737-2000, 05120000-2040
