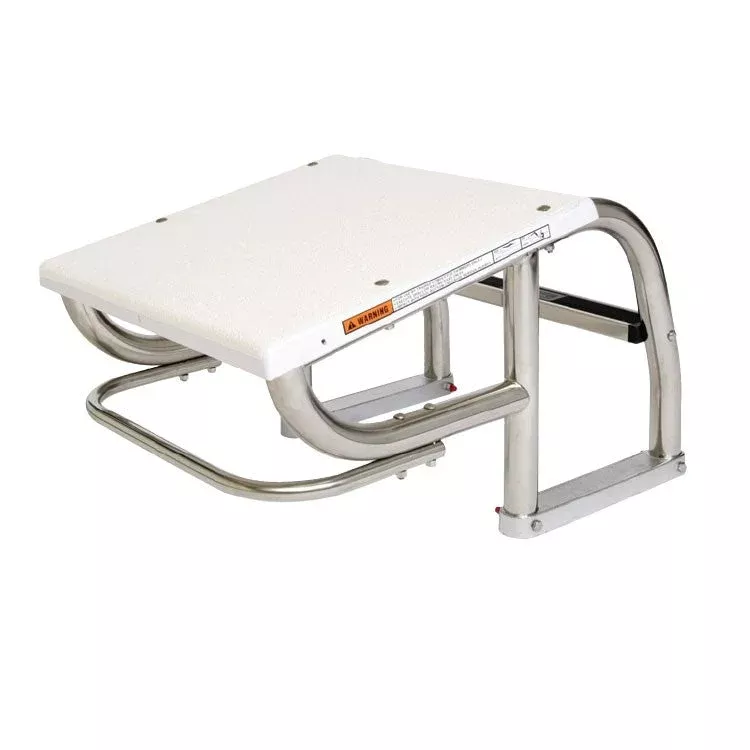

These economical, low profile starting platforms are a great entry level starting platform for recreational or training facilities that have a lot of new swimmers. The stainless steel frame is electropolished to a high sheen, and will resist corrosion. The footboard has a sanded tread for safety. Meets FINA, NCAA, NFSHSA, USMS, USAS and competition pool rules and regulations
FRAME
1.90″ O.D. x .065″ type 316L stainless steel tube with polished and buffed finish.
Setback: 26.5″. Height off deck: 12″ to 29.5″. Footboard: 22″ x 22″. Meets FINA, NCAA, NFSHSA, USMS, USAS and competition pool rules and regulations.
Order the 18” model when your water depth is 4’-6’ and your deck to water dimension is 6” or less.
PLATFORM TOP
(A40190-5) Laminated fir, covered and reinforced by fiberglass-22″ x 22″
BACKSTROKE BAR
(w/hardware-A40205-1) (Bar only 2402050) 1.00″ O.D. x .065″ wall, type 316L stainless steel tubing fastened to the side rails flush with the front of the platform.
ANCHORS
(A41659-0) Chrome plated brass.
FRAME
1.90″ O.D. x .065″ wall, type 316L stainless steel tubing.
TREAD
(LTDF-105) 15 Elite, type 304 polished stainless steel.
