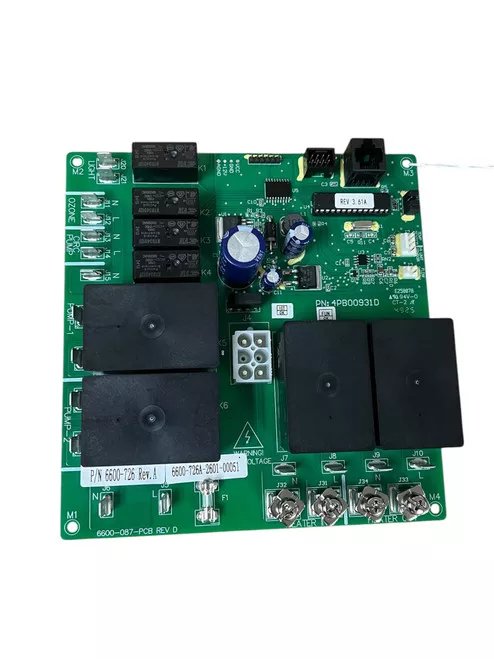

780, Select, J-300, J-200 Series 240v LED Board

Description

780 Series, Select Series J-300, and J-200 Collection 240v LED Board 6600-726

This OEM circuit board is for 1 or 2 pump models WITH circulation pump. This is for dedicated 3-wire, 220v-240v models only. Not compatible with 120/240v convertible or 4-wire models.

Fits all of the following models:

• 2002-2003 J-320
• 2005-2007 J-325
• 2002-2013 J-330 & J-335
• 2002-2013 J-340 & J-345
• 2007-2013 J-355
• 2007-2013 J-365
• 2008-2013 J-375
• 2007-2012 J-270 & J-280 with optional circulation pump
• 2008-2011 J-230 with optional circulation pump
• 2011+ J-LX & J-LXL
• 2014-March 2017 780 Series Hamilton/Chelsee/Certa/Montclair w/Smart Logic (Rev. 3.61+ Chip)
• 2014-January 2019 Select Series
• 2005 780 Series Cayman
• 2012-March 2013 780 Series Camden
• 09/2011-03/2013 780 1-pump Camden
• B. 01/2012-03/2012 1-pump 680 Burlington model EQUIPPED with a circ. pump
• All other 1998-March 2017 2 Pump 680/780/Select/Sweetwater Spas eqipped with a circulation pump

This circuit board replaces all of the following part numbers: 6600-088, 6600-288, 6000-167

Compatible with the following sensors:

• Temperature sensor 6600-166
• High limit sensor 6600-144
• Flow switch 2560-040

Compatible with the following control panels:

• 6600-501
• 6600-500
• 2600-321
• 2600-328
• 2600-331
• 2600-322

PLEASE NOTE: Due to the sensitive nature of electronics, items such as circuit boards, sensors, pumps, heaters, control panels, SmartTub, transformers, fuses, etc. are NOT returnable regardless of condition, whether it was or was not installed, or whether it was incorrectly ordered. This is done to ensure every single component we ship has not been damaged or tampered with.
