Analog Topside Control, Air, Tecmark, 230V, 4-Button, Temp Display w/10′ Cable & Overlay, Command Center

Sale!
Analog Topside Control, Air, Tecmark, 230V, 4-Button, Temp Display w/10' Cable & Overlay, Command Center

Analog Topside Control, Air, Tecmark, 230V, 4-Button, Temp Display w/10′ Cable & Overlay, Command Center

Original price was: $276.79.Current price is: $219.63.

14 in stock

SKU: HTP58-319-1081 Category:

Description

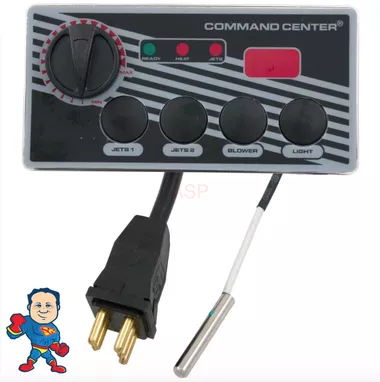

This part is an Analog Topside Control, Air, Tecmark, 115V, 4-Button, Temperature Display with 10′ Cable & Overlay, sometimes called a Command Center.. This type topside with LED display can be found on Jacuzzi Whirlpool, Blue Ridge, Gatsby, Spa Builders and many other brands with a Pneumatic Style control system.. This control features 4 push buttons, thermostat, 10 foot power cable with 5 pin plug, overlay sticker and 48″ temp Sensor with bulb to be placed either in a thermowell or on the pinch plate of the heater, and the overlay sticker.

These come in either 115v or 230v and also a variety of pumps and blower configurations. This version is most popular in 230 Volts! Check the sticker on the underside of your topside to determine the voltage.

Topside Type Air
Topside Complete Complete Topside
Manufacturer Tecmark
Cord Connector Type Large Molded, 5-Pin
Model Command Center, Digital
of Buttons 4
Topside Shape Rectangular
voltage 230v
Hole Size 5-5/8″ x 2-1/2″
Capillary Length 48″
Bulb Size 5/16″
Cord Length 10ft
Panel Size 6-1/2″ x 3-1/4″
Overlay Dimension 6-3/8″ x 3-1/8″
