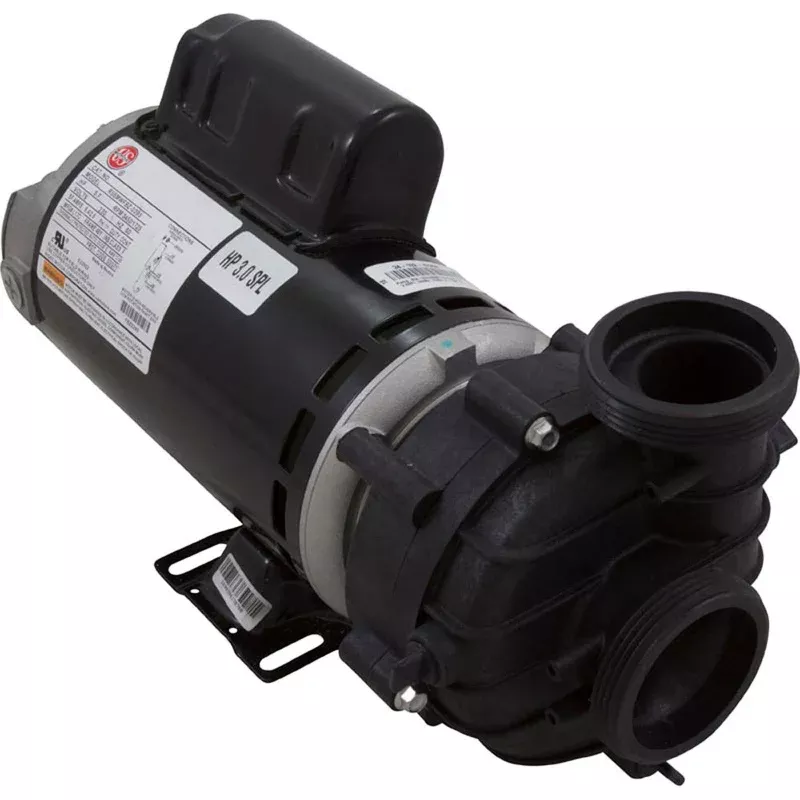

Pump, Sta-Rite/BWG DuraJet DJ, 3.0hp Nidec, 230v, 2-Spd, 2″

Description

When matching pumps always use AMPERAGE rather than Horsepower. Many times the labeled Horsepower does not accurately represent actual horsepower.

The Sta-Rite ‘DJ’ series spa pump is designed to efficiently circulate water in spas and hot tubs. These pumps are excellent performers and have gained an industry distinction for being durable, reliable, quiet, trouble free and efficient. The center suction wetend is adjustable, allowing for a horizontal or vertical discharge position. Be aware that plumbing configuration may effect performance.

• California Title 20 Compliant.

Note: No lubrication or regular maintenance are needed.

Product Specifications:

Complete Pump Type
Portable Spa Pump

Speed
2 Speed (2-Spd)

Motor Voltage
230v

Drain Plug Location
3,6,9 o`clock

Pump to Motor Foot Types
3

Suction Auxiliary Port
3/8″ barb (b) 2ea

Suction Style
Center

Suction Connection (Physical Dimension)
3-1/16″od

Suction Connection Type
Male Buttress Thread (mbt)

Suction Pipe Size
2″

Discharge Auxiliary Port
3/8″ barb (b) 1ea

Discharge Style
Side

Discharge Connection (Physical Dimension)
3-1/16″od

Discharge Connection Type
Male Buttress Thread (mbt)

Discharge Pipe Size
2″

Horsepower
3.0SPL

Motor Frame
48 Frame Thru-Bolt

Motor Amperage/Wattage
8.4A/2.6A

Manufacturer
Sta-Rite/Pentair/Balboa

Pump Model
Dura-Jet-DJ

Manufacturer Impeller Number
17400-0135

Volute Fastening Type
4 Bolts 4 Nuts

Volute/Sealplate Number
17400-0003
